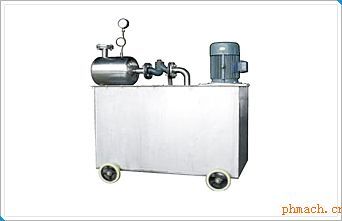

 WSZ-系列无位高效水喷射真空泵机组
关键词:无位高效水喷射真空泵  无位高效水喷射真空泵  真空泵机组  水喷射真空泵机
产品名称: WSZ-系列无位高效水喷射真空泵机组
产品编号:
产品商标:
产品规格:
参考价格: 面议
更新日期: 2019/12/17 10:41:39
被阅次数: 5171次


公司名称:常熟市春来机械有限公司
会员级别:免费会员

详细说明

结构特点
本泵结构设计独特,采用电机和水泵立式安装,水喷射器与水泵直接连接,并全部埋在水中完成作业,因此具有独特的优点:

(一)机组结构*紧凑,体积*小。
(二)水泵不需要引水,不泄漏。
(三)使用和维修方便。
(四)喷射器本身无往复运动的部件,噪音低,使用寿命长。
(五)耗水量少,节电。
(六)水箱体底部有滚轮,整机移动方便,不需要安装底脚,放平衡即可开机作业,还适用于野外作业。


Structure: This pump has unique structure. It has electric motor and pump vertically mounted. The water-jet blower directly connects to the pump, and both are immer-sed in water when in operation. Its features are:
1. The most compact structure and the smallest volume;
2. The pump does not need feed water and therefore will not leak;
3. Easy to use and maintain;
4. The water-jet has no reciprocal elements, with low noise and long service life;
5. Low water consumption and saving energy;
6. Equipped with roller wheel at the bottom of water tank, it is easy to move and does not need foot. It can operate once it is well placed, also suitable for field operation.

型号
Model
真空度(MPa)
Vacuum
排气量(m3/h)
Air displacement
工作水压(kgf/cm2) Working water pressure
水温(℃)
Water temperature
配备电机(KW)
Equipped motor
水箱外形尺寸 长×宽×高 Dimensions of water tank
WSZ-80
0.094
80
0.8
15
4
800×400×550
WSZ-160
0.096
160
3
15
5.5
1280×600×750
WSZ-200
0.096
200
3
15
5.5
1280×600×750
WSZ-300
0.094
300
3
15
7.5
1340×750×800
